Boat models
Two hull designs.
Key feature: massive front decks

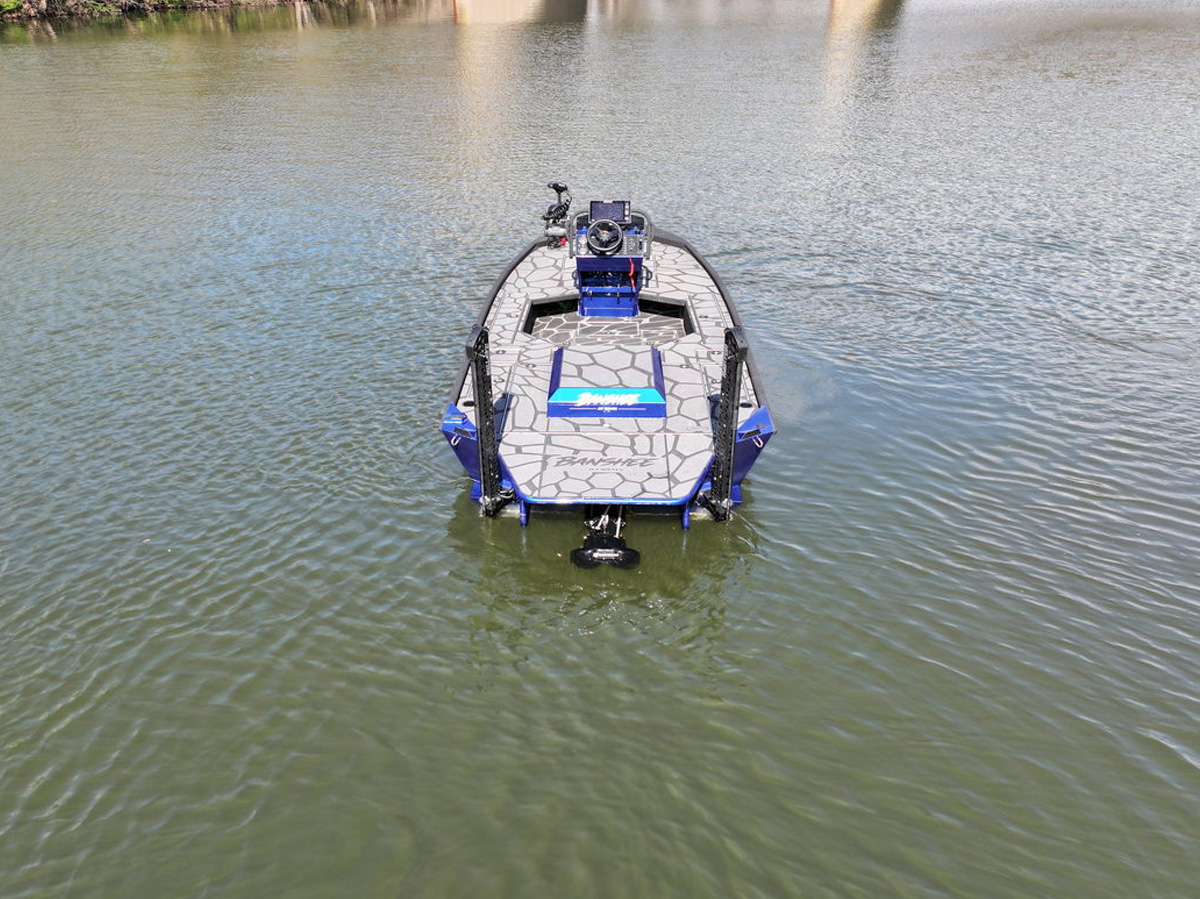

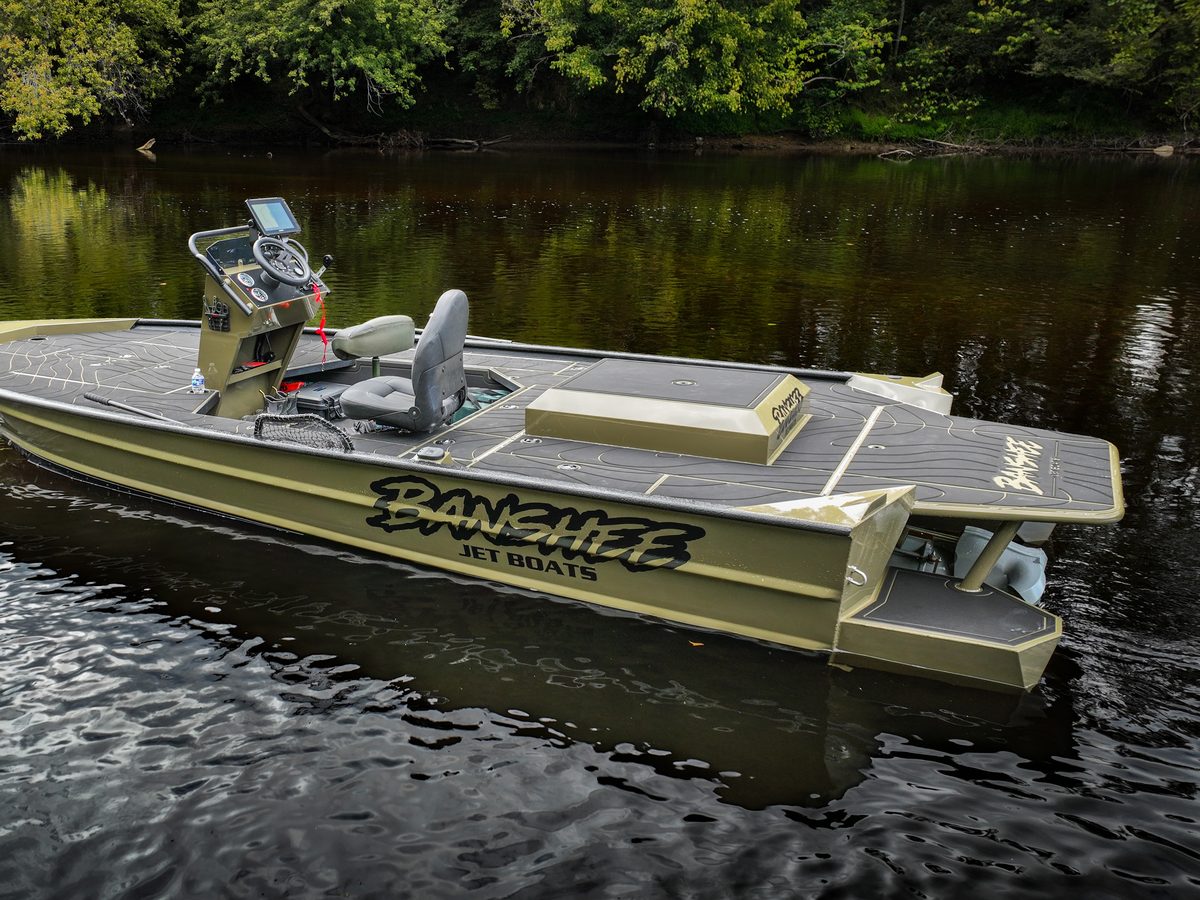

Model 01

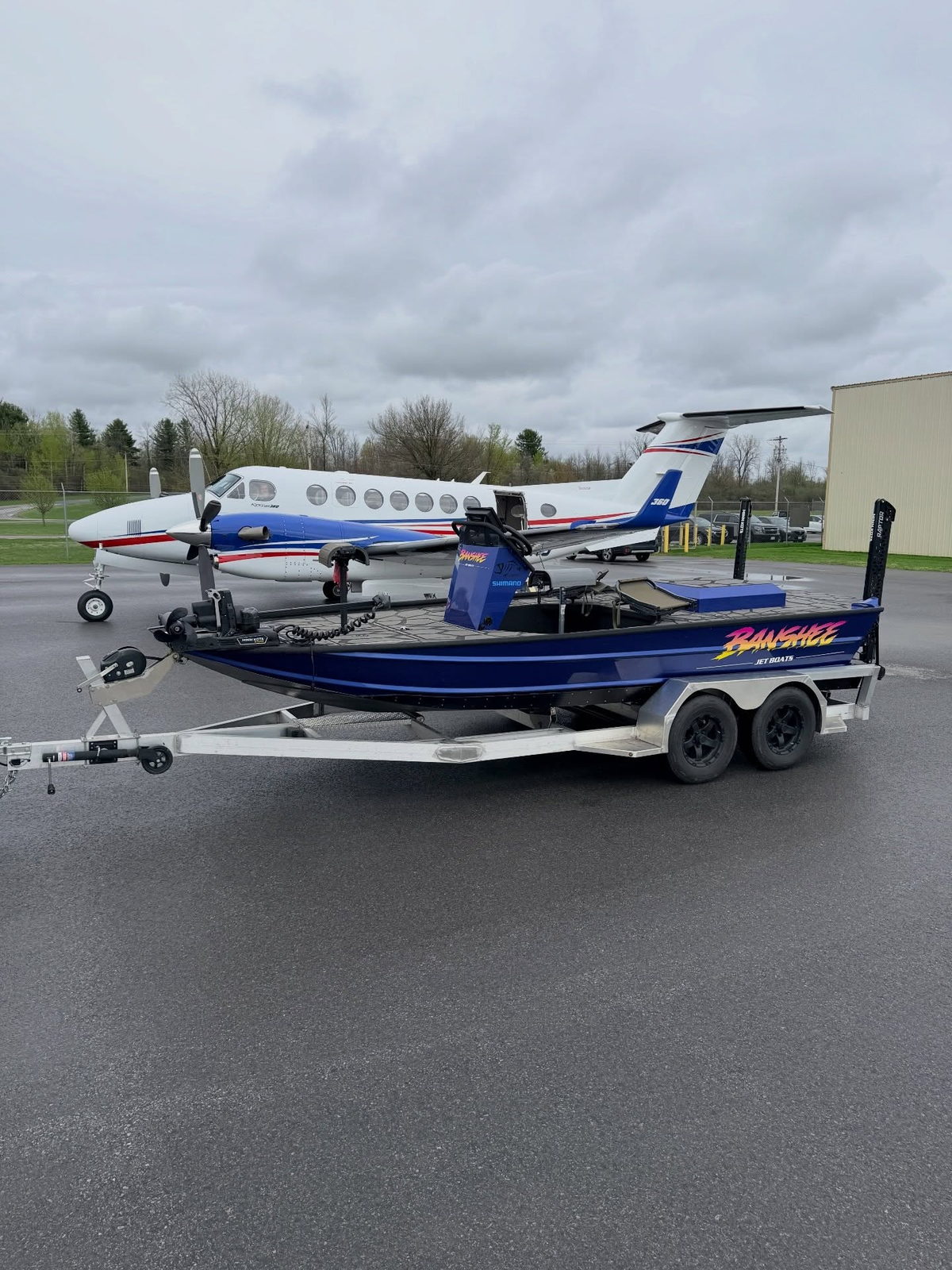

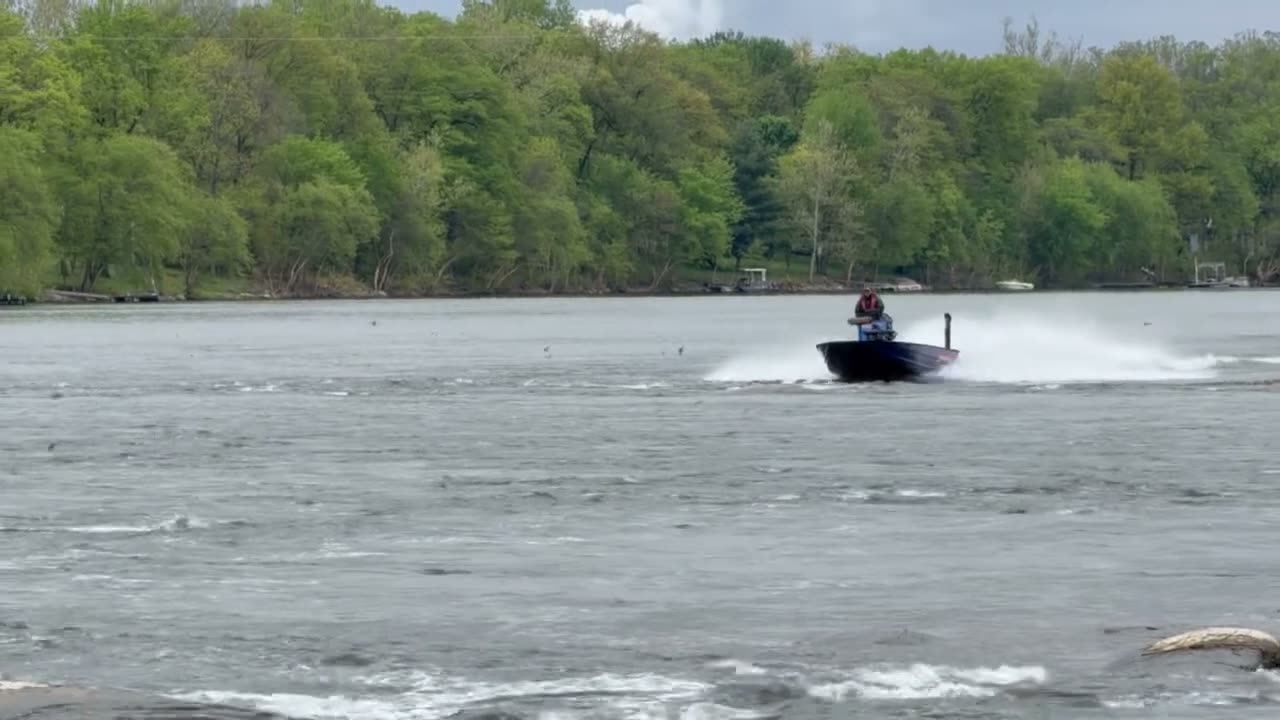

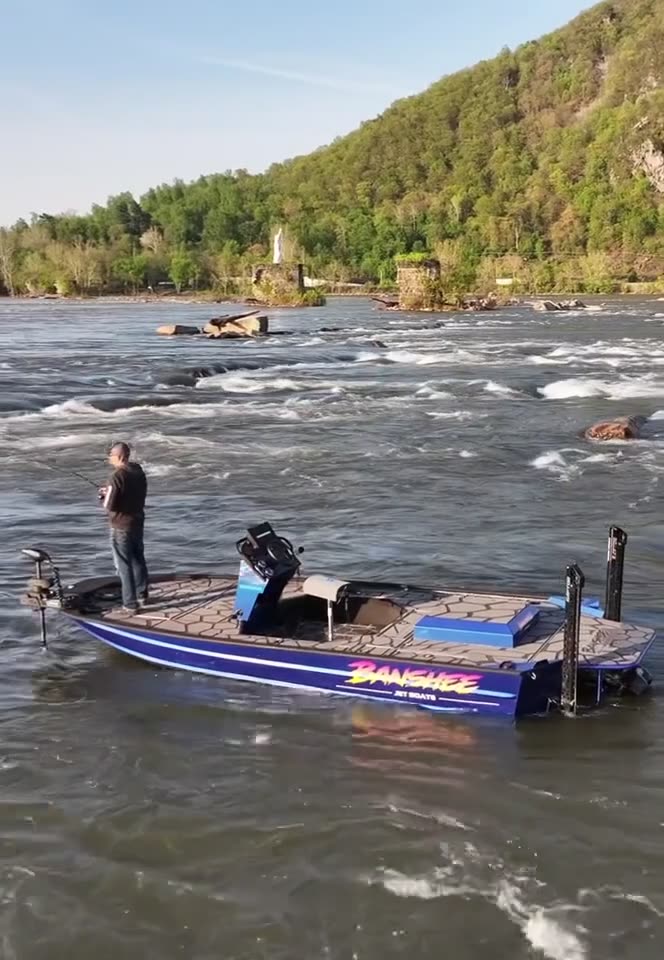

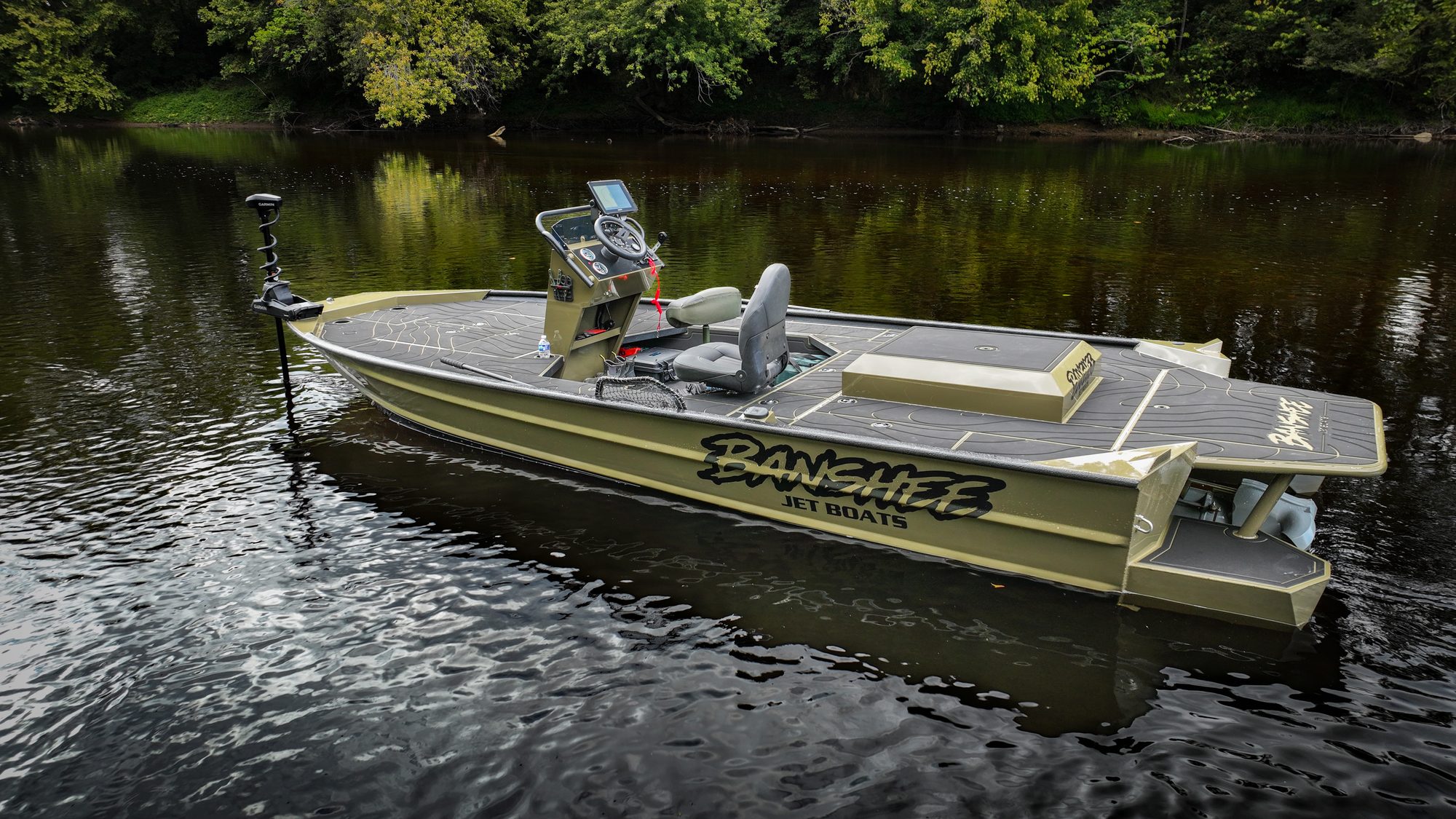

SR 72 Inboard Jet
Inboard jet drive. Wider, with more deck to work from.
Specifications
Dimensions
- Hull length
- 19′ 6″
- Overall length
- 21′ 6″
- Bottom width
- 72″
- Beam
- 96″
- On the trailer
- 25′
- Trailer width
- 8′ 6″
- Height on trailer
- 7′ 2″
- Front deck width
- 87″
- Front deck length
- 75″
Overall length includes a 2′ welded-on platform. Breakaway trailer tongue available.
Front deck width is measured in front of the console, excluding gunnel rails. Length runs from the rear edge of the bow cap to the front edge of the console.
Construction
- Bottom
- .190″ 5086
- Armor plating
- .250″ 7000
- Sides
- .125″
- Decking
- .100″
Same hull materials as the SR 60.
Storage & layout
- Hatches and compartments
- Up to 15
- Rod lockers
- To 9′
- Livewell
- Yes
Plus multiple dry-storage options.

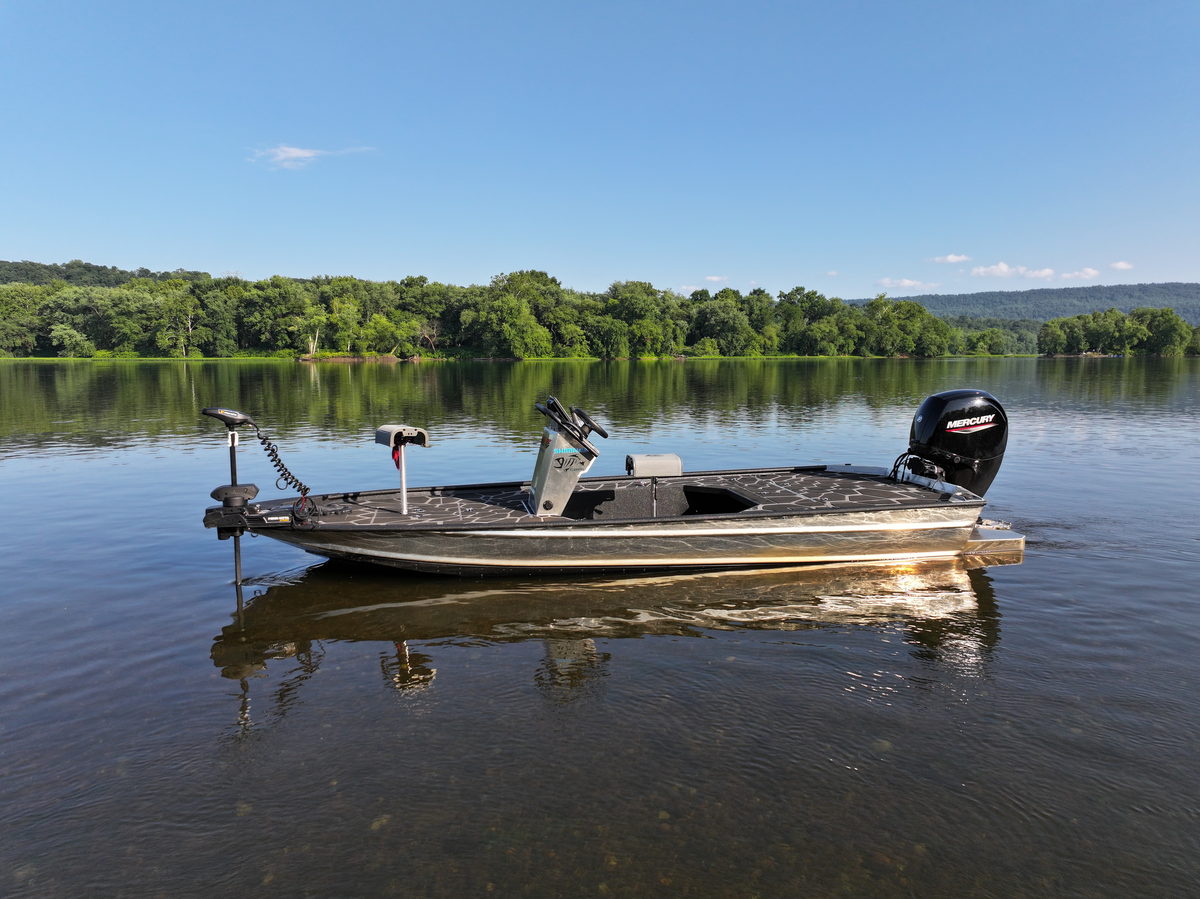

Model 02

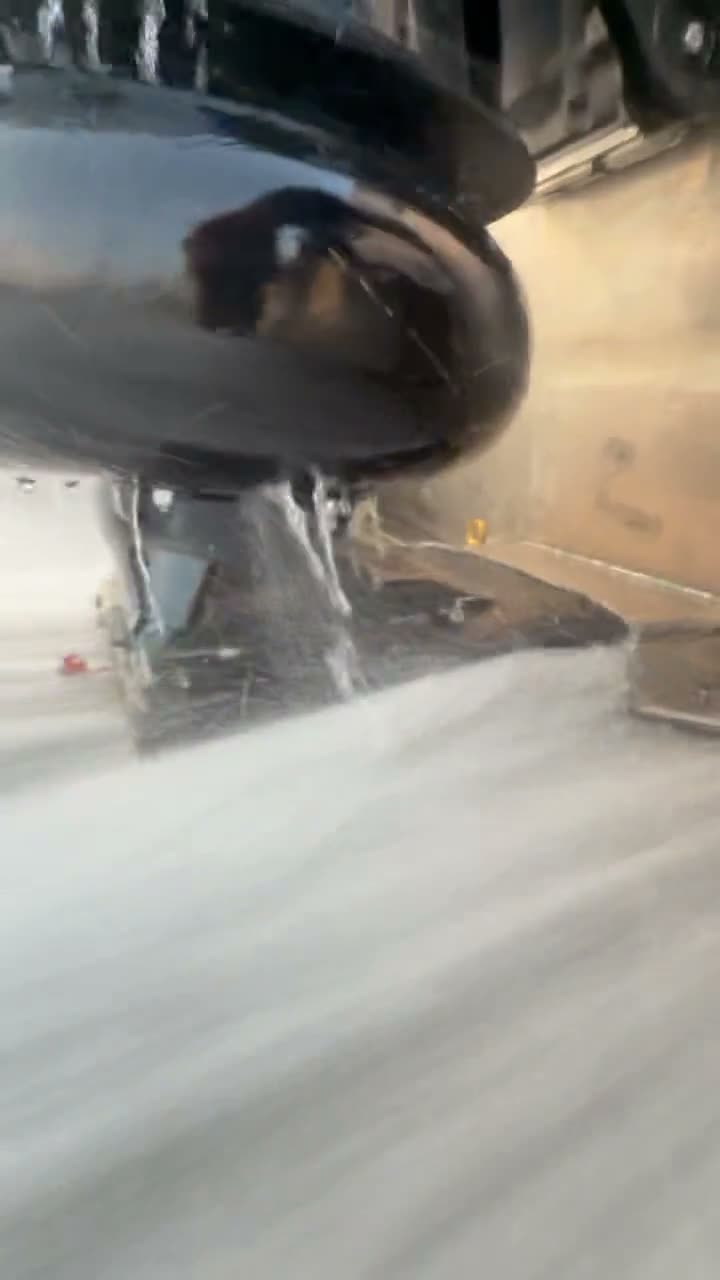

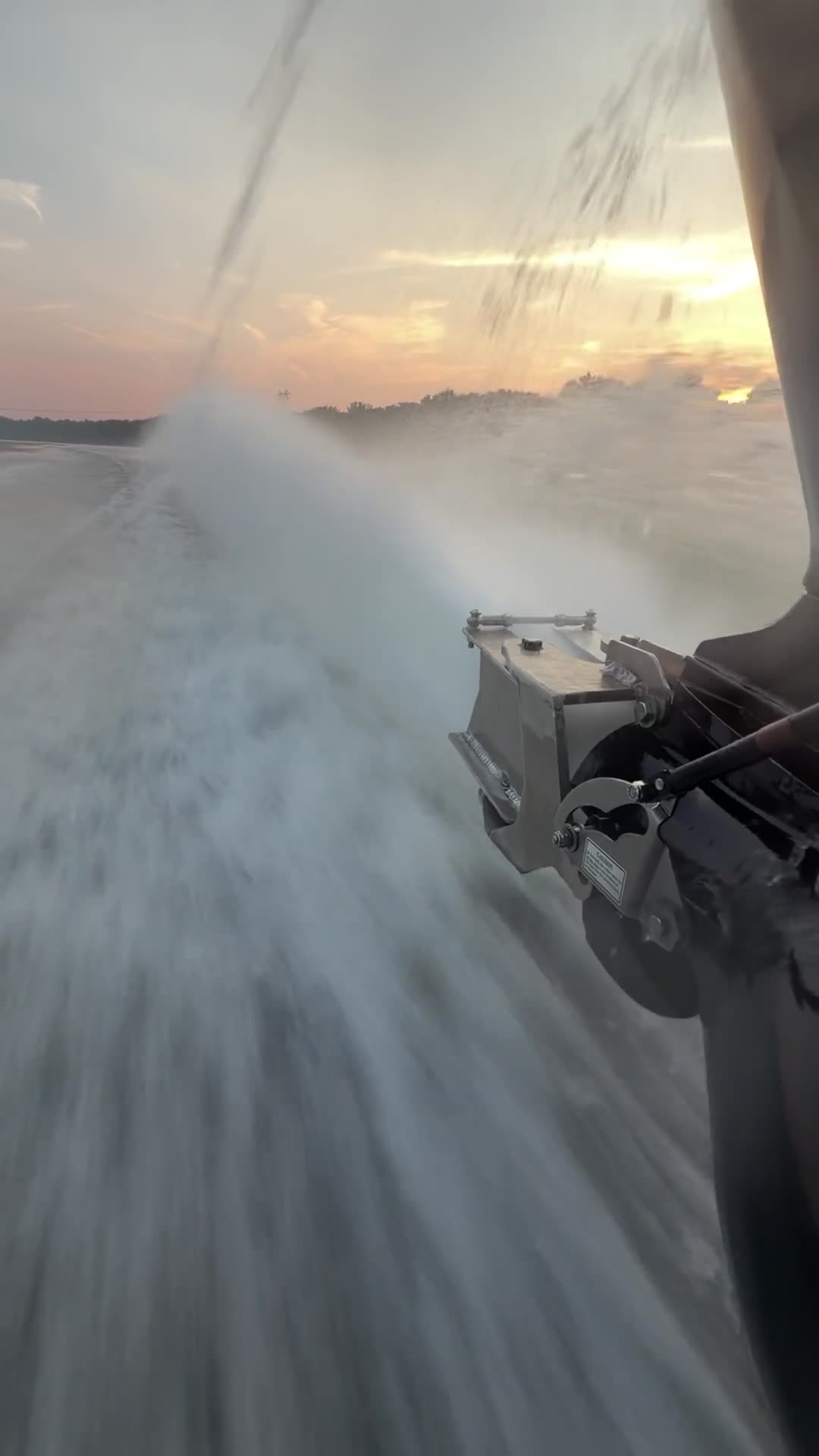

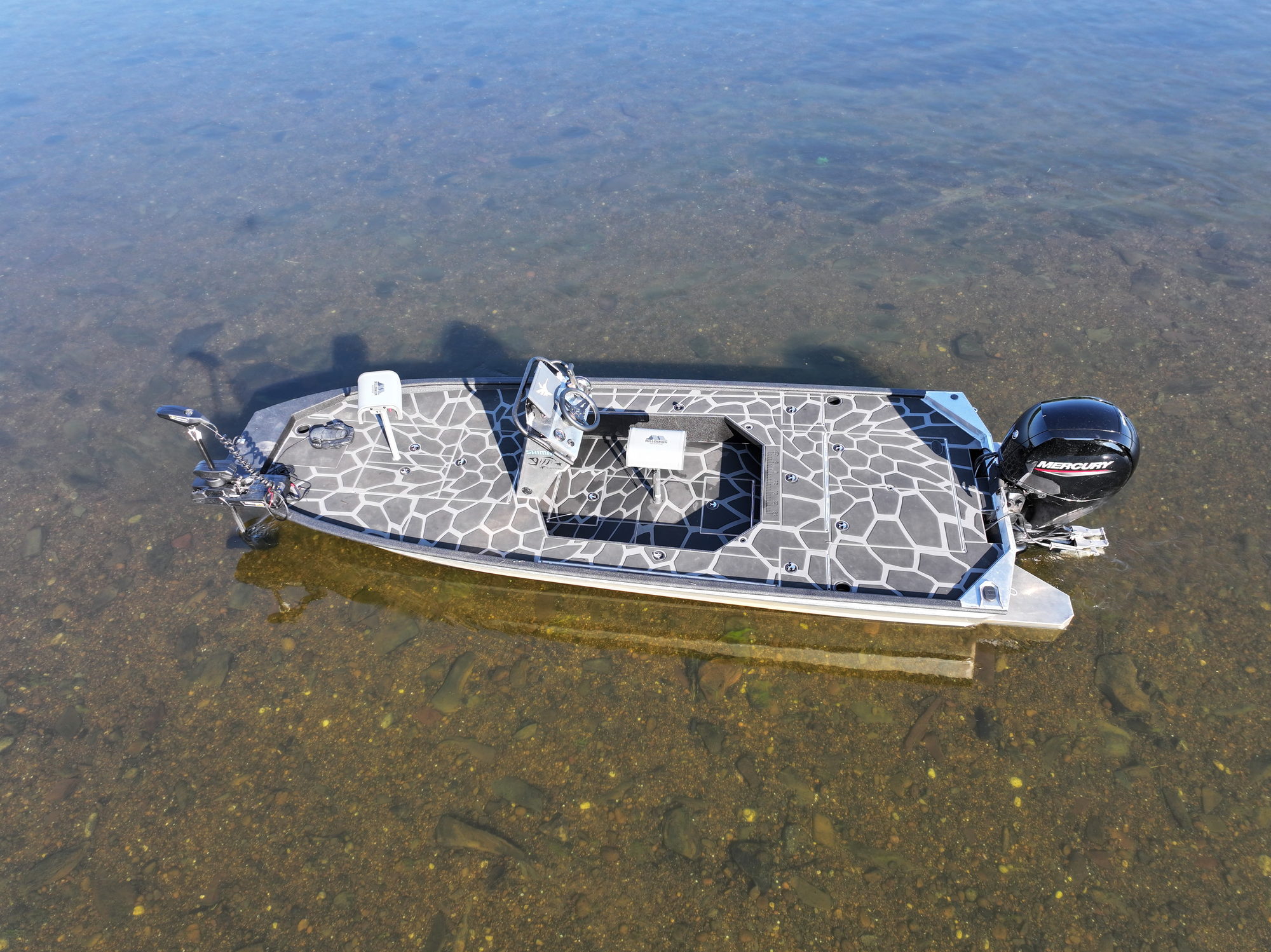

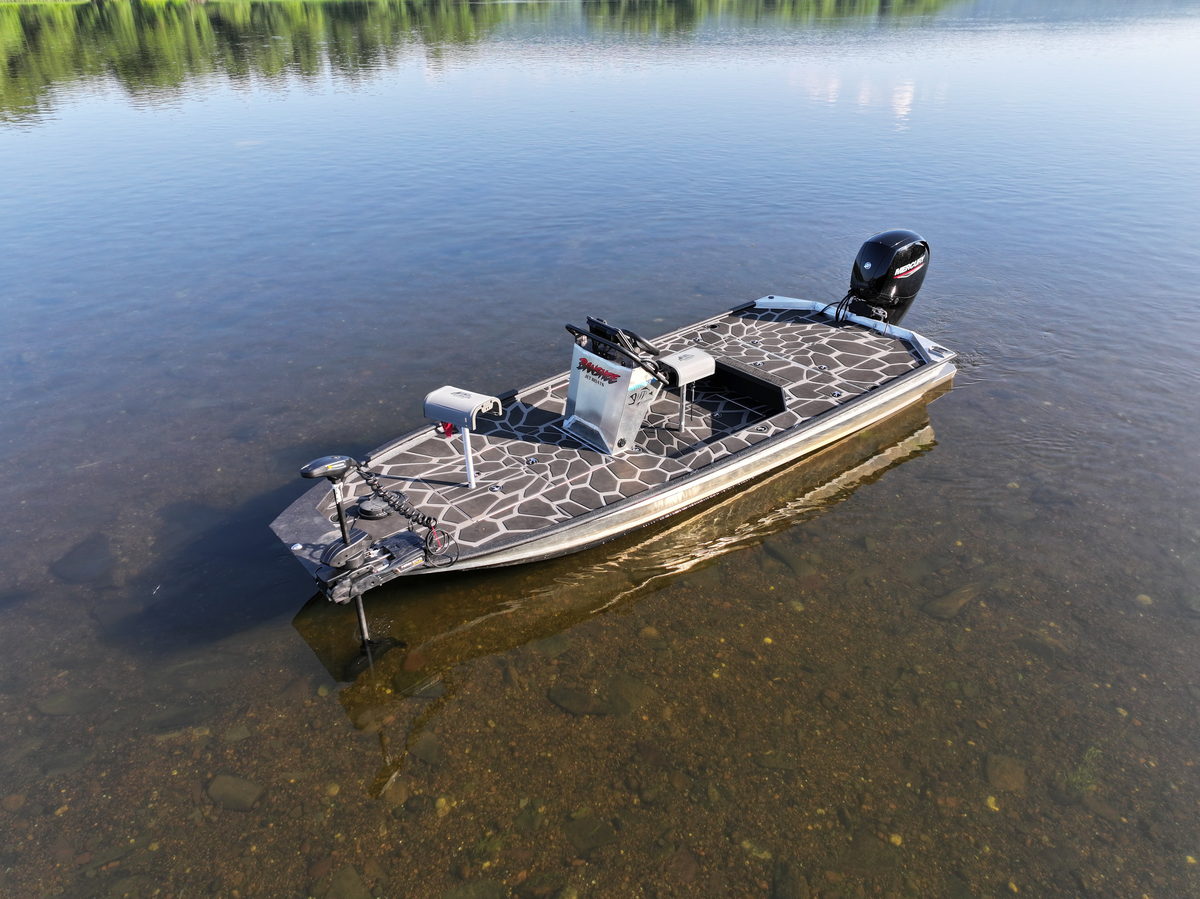

SR 60 Outboard Jet
Outboard jet drive. Lighter on the transom, simpler to service, and the easier of the two to run skinny all day.
Specifications
Dimensions
- Hull length
- 18′ 6″
- Overall length
- 20′
- Bottom width
- 60″
- Beam
- 84″
- On the trailer
- 25′
- Trailer width
- 7′ 10″
- Height on trailer
- 6′ 6″
- Front deck width
- 75″
- Front deck length
- 73″
Overall length includes welded-on float pods.
Front deck width is measured in front of the console, excluding gunnel rails. Length runs from the rear edge of the bow cap to the front edge of the console.
Construction
- Bottom
- .190″ 5086
- Armor plating
- .250″ 7000
- Sides
- .125″
- Decking
- .100″
All aluminum, welded throughout.
Storage & layout
- Lids and compartments
- 11
- Rod boxes
- 2
- Livewell
- Yes
Plus multiple dry-storage compartments.
Search & Rescue
Search & Rescue boats available.
Contact us for configuration and pricing.
Armor plating
Why we use aluminum armor plating instead of UHMW.
Impact, wear, thermal expansion and what experience taught us about UHMW on the bottom of a jet boat — and why we armor with 7000-series aluminum instead.
Not sure which one?
The drive is the real decision, and it is easier to make standing in both.
